NAVAL ARCHITECT:  ETNZ

CONSTRUCTION: Carbon/Nomex/Structural Foam

POWERTRAIN:

• Toyota hydrogen fuel cells 80kW x 2 (1 per hull)
  Electric motors: 2 x 220kW (1 per hull mounted above foil struts)
• Tanks: 4 x 8.4kg hydrogen gas @ 350bar (2 tanks per hull)
• Batteries: 2 x 42kW (1 per hull)

POWERTRAIIN COOLING:

• Seawater pickup located at front of each foil strut torpedo
• Main cooling circuit pickup pumps x 2 (1 per hull) : Gianneschi 230/400 0.55KW

DRIVETRAIN:

• Driveshaft housed inside of each foil strut
• Driveshaft bevel gearbox located in foil strut torpedo
• Mercury Bravo 1 propellers mounted at aft end of foil strut torpedo

SIMRAD NAVIGATION PACKAGE :

• 2 x Simrad NSO EVO 3 16” MFD
• 1 x Simrad RS40 B VHF with AIS RX/TX
• 1 x AIS/VHF Antenna and AIS GPS
• 1 x GPS and heading Sensor GS25
• 1 x Simrad OP50 control Simrad Card Reader

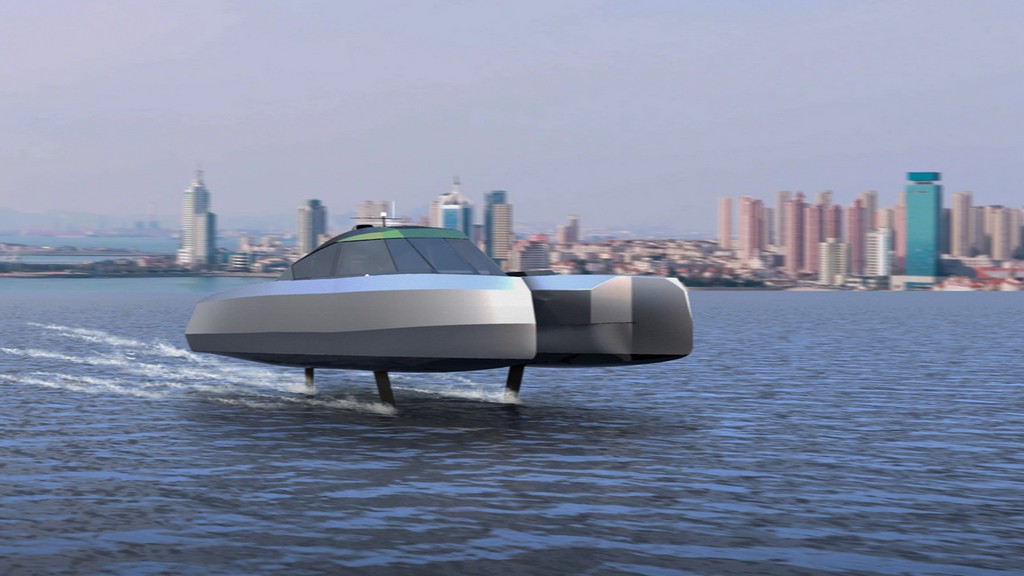

FOILS:

• Port and starboard T-foils with torpedo at intersection with foil wings
• Foil wings:
  • Central spar connecting port and starboard struts
  • Central flaps: x 2 hinged off central spar
  • Outboard spars: x 1 outboard of port strut and 1 out board of starboard strut
  • Outboard flaps: x 1 port and 1 x starboard, hinged off outboard spars
•  Single rudder and elevator with adjustable rake

AUTOPILOT FLIGHT CONTROL SYSTEM

STEERING:

• Fly by wire joystick steering

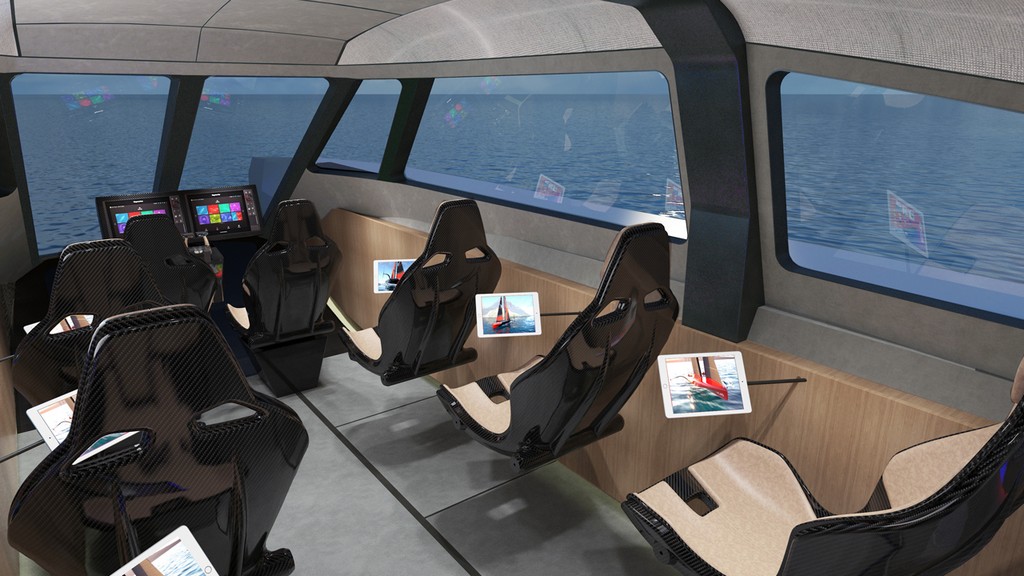

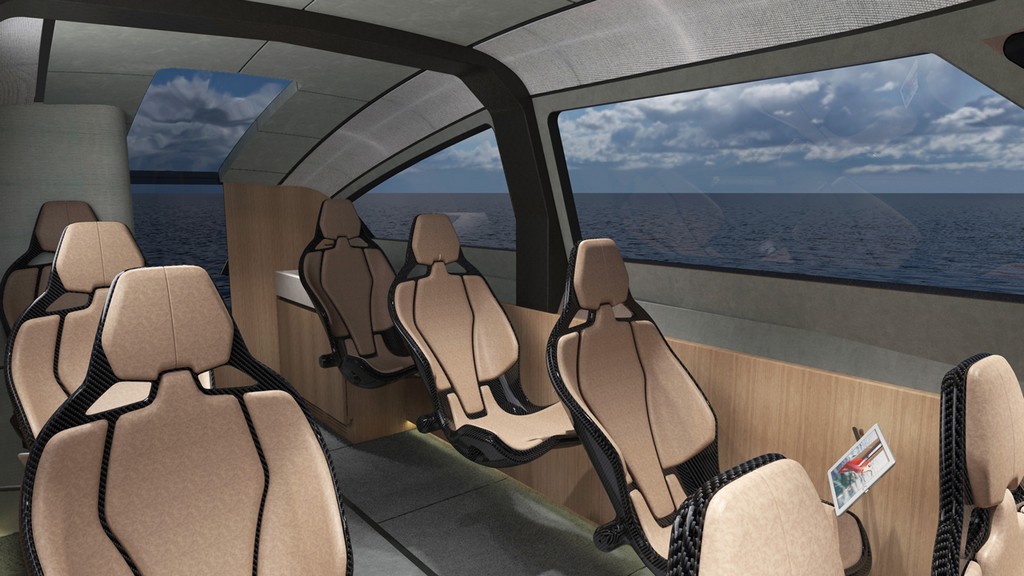

INTERIOR:

• 8 x Recaro seats
• Air conditioning
• Carpet sole
• Fabric hull & headliner
• Two colours exterior
• Interior LED lighting
• Chemical toilet
• Lightweight 15L fridge
• Sink and vanity cabinet
• Joystick control
• Hydrogen electronic display
• Lap seatbelt
• Options of customized items will be quoted on design
